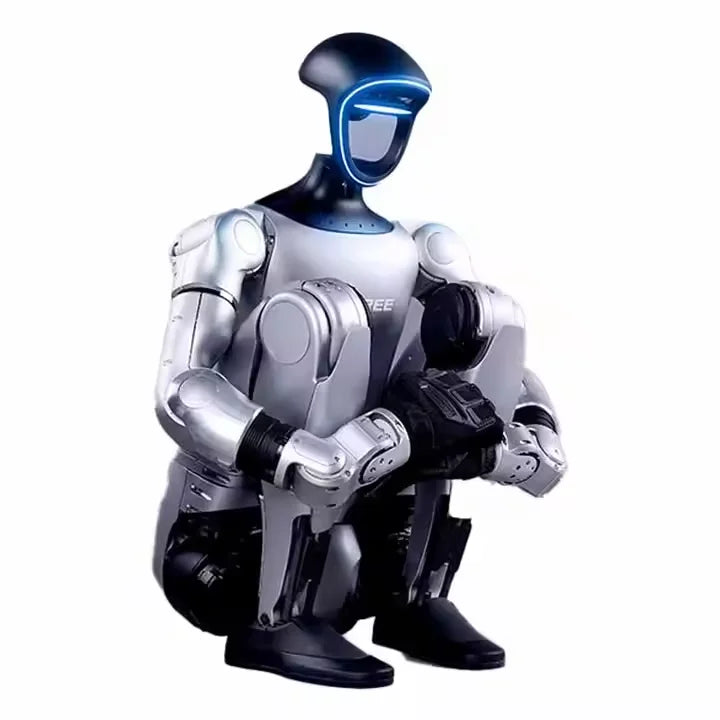

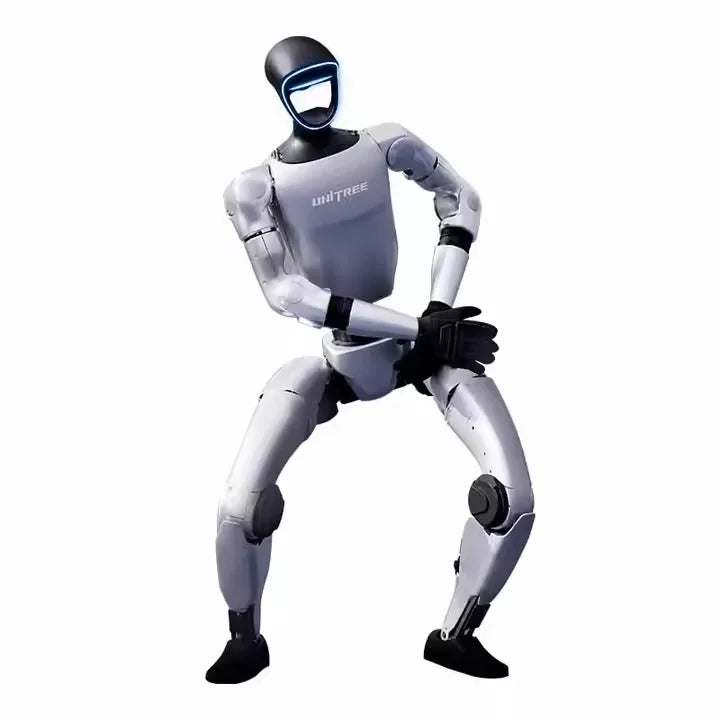

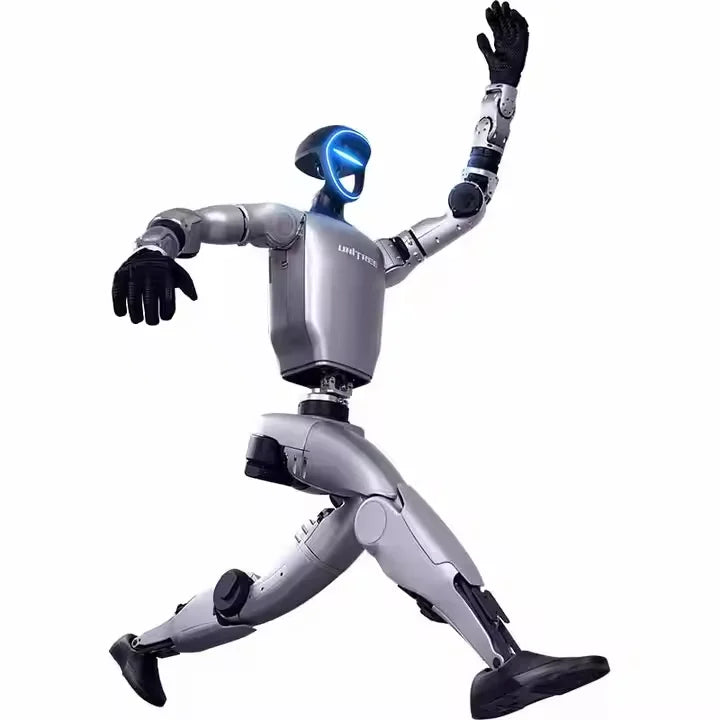

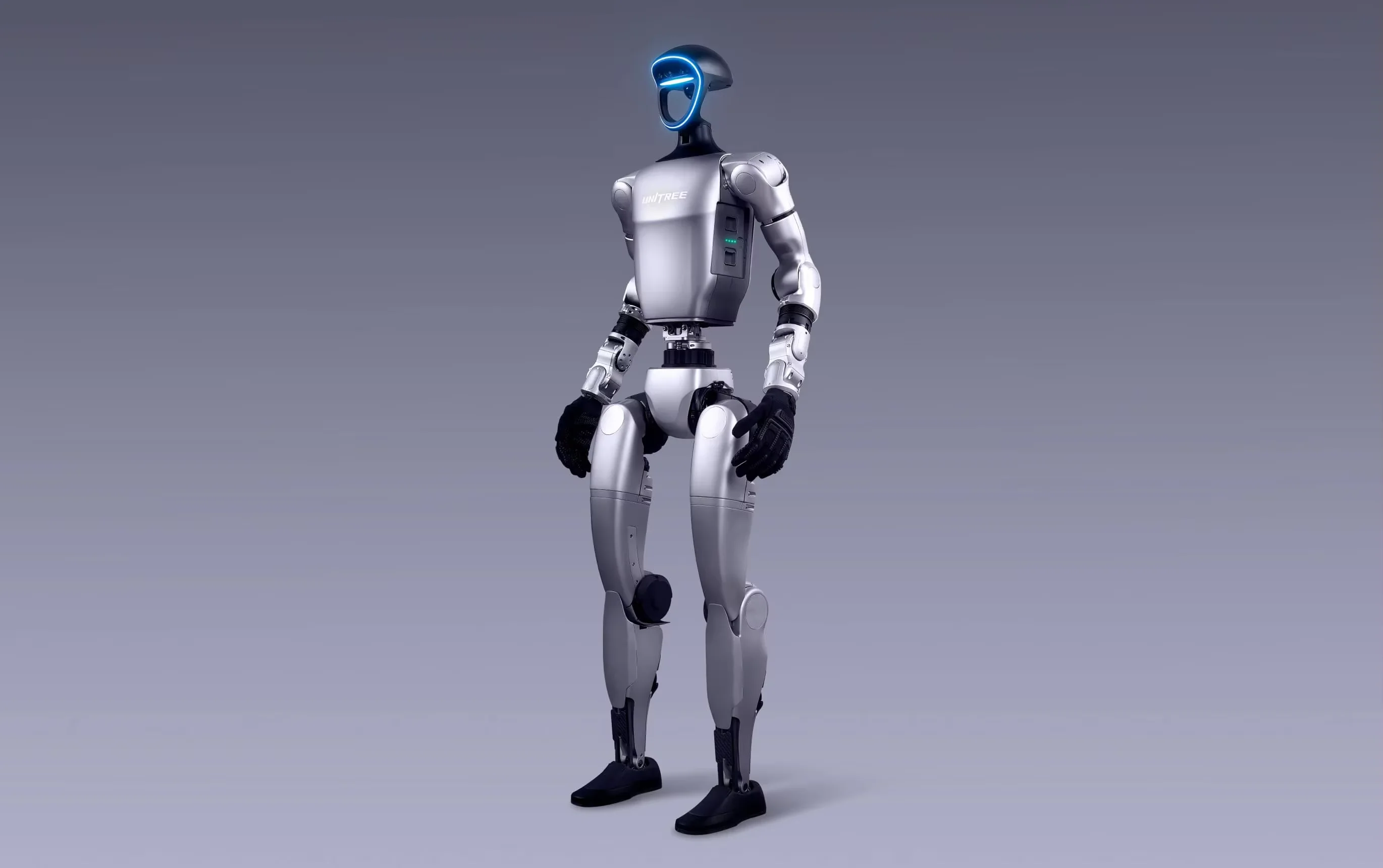

China Commercial Home Human Robot Smart Educational Intelligent Robot Human Size Humanoid Robots For Sale
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
Estimated delivery
Description
Friends, welcome to our store, you can tell me your specific product requirements, if you need other models of this product, please contact me, I will send the product link for your purchase!
WhatsApp/WeChat: Austin +86 18174450433 (Reply within 10 minutes)
Email:3841451120@qq.com (Reply within 8 hours)

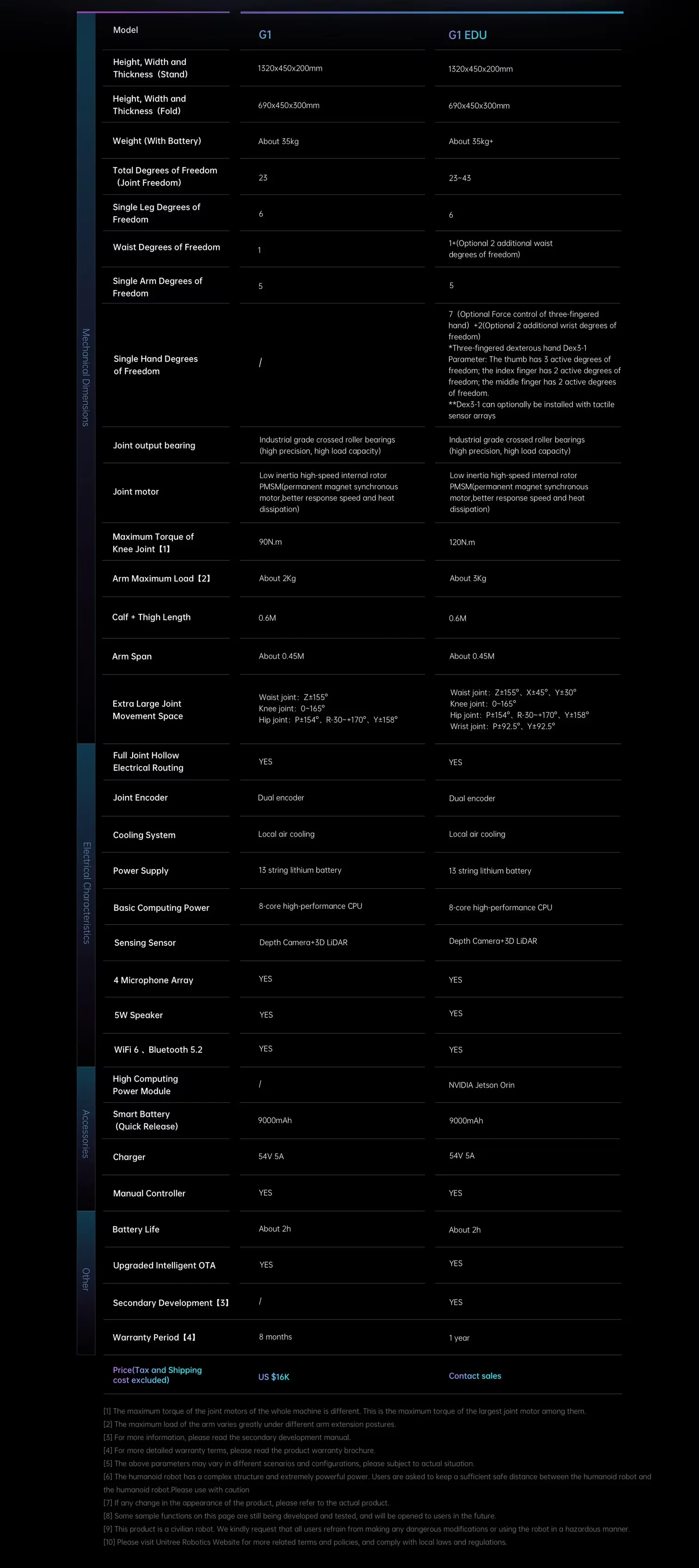

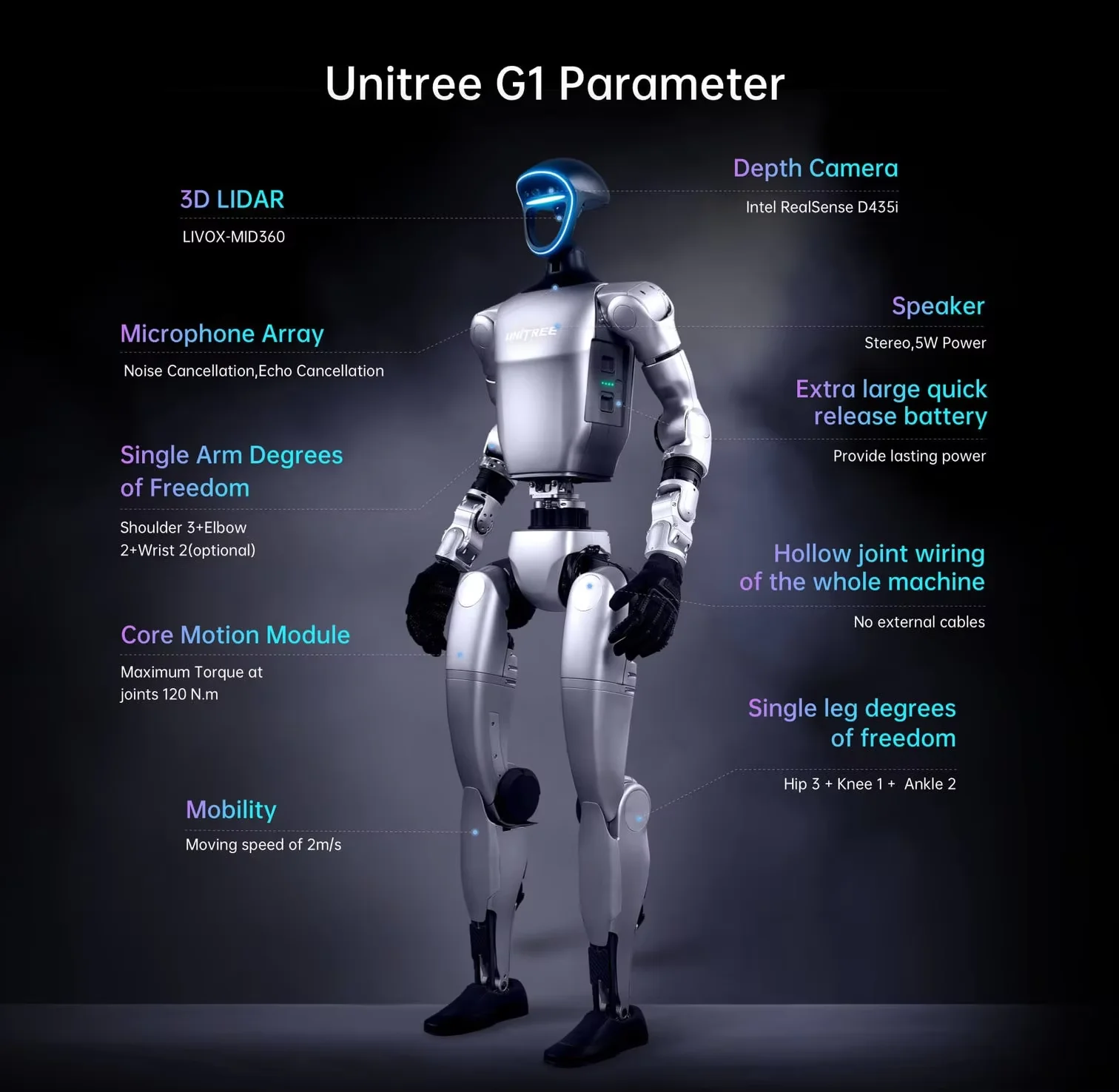

Product descriptions from the supplier
|

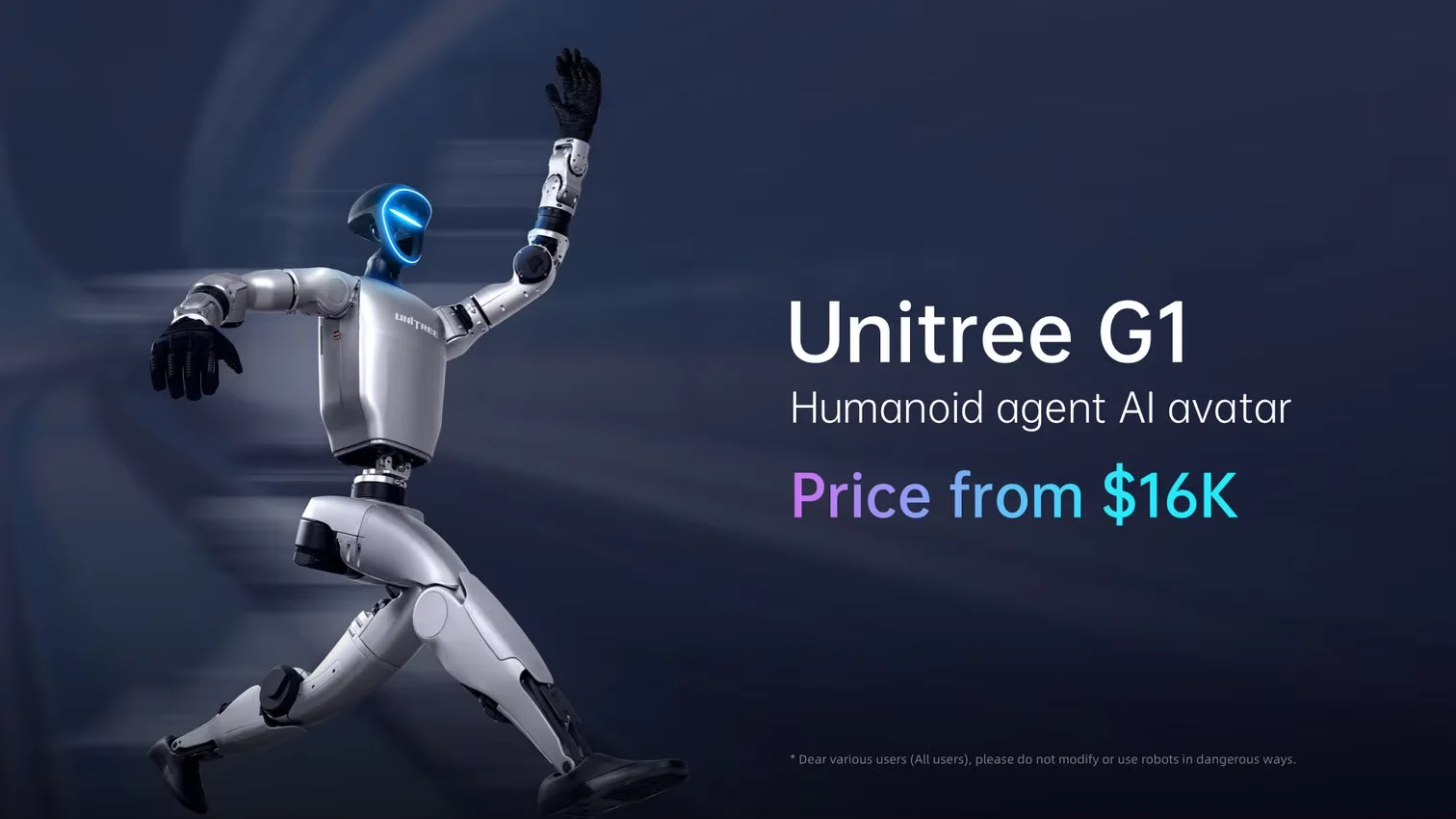

model
|
G1
|
G1-EDU
|
|
Height, Width and Thickness (Stand)
|
1320x450x200mm
|
1320x450x200mm
|
|
Height, Width and Thickness (Fold)
|
690x450x300mm
|
690x450x300mm
|
|

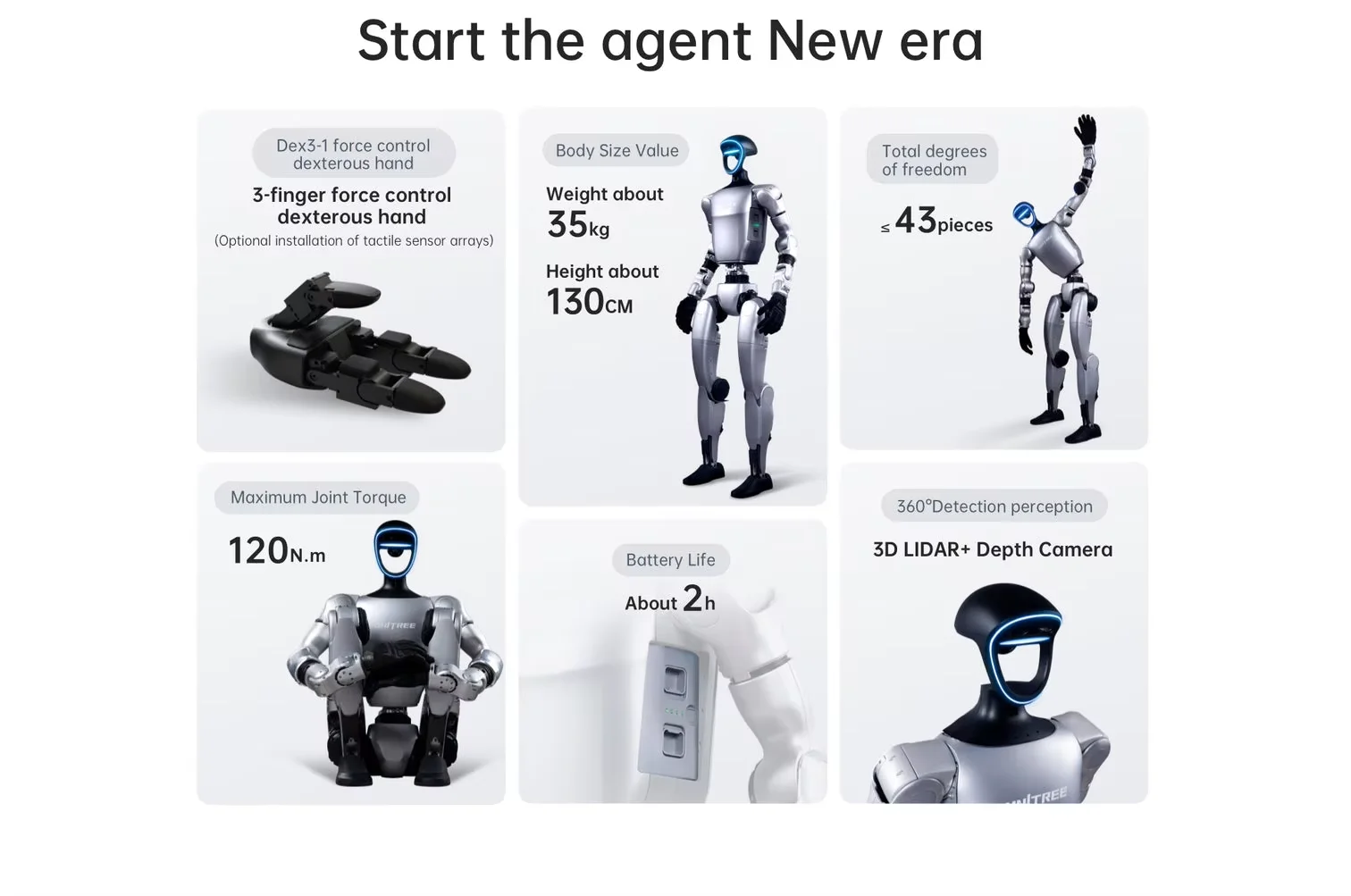

Weight (With Battery)
|
About 35kg
|
About 35kg
|
|
Total Degrees of Freedom (Joint Freedom锛�
|
23
|
23~43
|
|
Single Leg Degrees of Freedom
|
6
|
6
|
|
Waist Degrees of Freedom
|
1
|
1+ (Optional 2 additional waist degrees of freedom)
|
|
Single Arm Degrees of Freedom
|
5
|
5
|
|
Single Hand Degrees of Freedom
|
/
|
7锛圤ptional Force control of three-fingered hand锛�+2(Optional 2 additional wrist degrees of freedom)
|
|
Joint output bearing
|
Industrial grade crossed roller bearings (high precision, high load capacity)
|
Industrial grade crossed roller bearings (high precision, high load capacity)
|
|
Joint motor
|
Low inertia high-speed internal rotor PMSM(permanent magnet synchronous motor,better response speed and heat dissipation)
|
Low inertia high-speed internal rotor PMSM(permanent magnet synchronous motor,better response speed and heat dissipation)
|
|
Maximum Torque of Knee Joint[1]
|
90N.m
|
120N.m
|
|
Arm Maximum Load[2]
|
About 2Kg
|
About 3Kg
|
|
Calf + Thigh Length
|
0.6M
|
0.6M
|
|
Arm Span
|
About 0.45M
|
About.45M
|
|

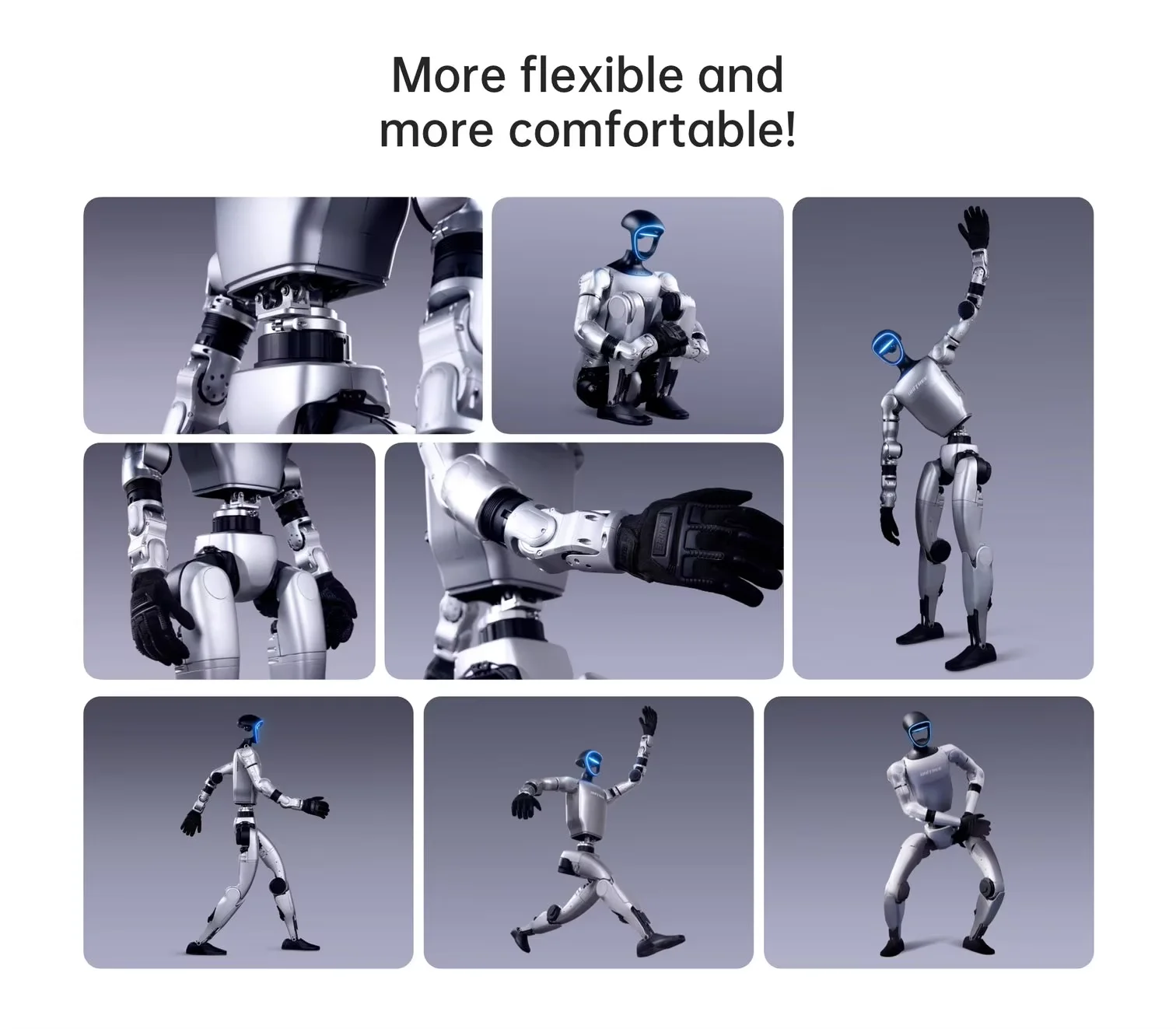

Extra Large Joint Movement Space
|
Waist joint锛歓±155°
|
Waist joint锛歓±155°銆乆±45°銆乊±30°
|
|
Knee joint锛�0~165°
|
Knee joint锛�0~165°
|
|
|
Hip joint锛歅±154°銆丷-30~+170°銆乊±158°
|
Hip joint锛歅±154°銆丷-30~+170°銆乊±158°
|
|
|
Wrist joint锛歅±92.5°銆乊±92.5°
|
||
|
Full Joint Hollow Electrical Routing
|
YES
|
YES
|
|
Joint Encode
|
Dual encoder
|
Dual encoder
|
|
Cooling System
|
Local air cooling
|
Local air cooling
|
|
Power Supply
|
13 string lithium battery
|
13 string lithium battery
|
|
Basic Computing Power
|
8-core high-performance CPU
|
8-core high-performance CPU
|
|
Sensing Sensor
|
Depth Camera+3D LiDAR
|
Depth Camera+3D LiDAR
|
|
4 Microphone Array
|
YES
|
YES
|
|
5W Speaker
|
YES
|
YES
|
|
WiFi 6 銆丅luetooth 5.2
|
YES
|
YES
|
|
High Computing Power Module
|
/
|
NVIDIA Jetson Orin
|
|
Smart Battery (Quick Release)
|
9000mAh
|
9000mAh
|
|
Charger
|
54V 5A
|
54V 5A
|
|
Manual Controller
|
YES
|
YES
|
|
Battery Life
|
About 2h
|
About 2h
|
|
Upgraded Intelligent OTA
|
YES
|
YES
|
|
Secondary Development[3]
|
/
|
YES
|
Note
[1] The maximum torque of the joint motors of the whole machine is different. This is the maximum torque of the largest joint motor among them.
[2] The maximum load of the arm varies greatly under different arm extension postures.
[3] For more information, please read the secondary development manual.
[4] For more detailed warranty terms, please read the product warranty brochure.
[5] The above parameters may vary in different scenarios and configurations, please subject to actual situation.
[6] The humanoid robot has a complex structure and extremely powerful power. Users are asked to keep a sufficient safe distance between the humanoid robot and the humanoid robot.Please use with caution
[7] If any change in the appearance of the product, please refer to the actual product.
[8] This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner.
[9] Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
[1] The maximum torque of the joint motors of the whole machine is different. This is the maximum torque of the largest joint motor among them.
[2] The maximum load of the arm varies greatly under different arm extension postures.
[3] For more information, please read the secondary development manual.
[4] For more detailed warranty terms, please read the product warranty brochure.
[5] The above parameters may vary in different scenarios and configurations, please subject to actual situation.
[6] The humanoid robot has a complex structure and extremely powerful power. Users are asked to keep a sufficient safe distance between the humanoid robot and the humanoid robot.Please use with caution
[7] If any change in the appearance of the product, please refer to the actual product.
[8] This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner.
[9] Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
Note
[1] The maximum torque of the joint motors of the whole machine is different. This is the maximum torque of the largest joint motor among them.
[2] The maximum load of the arm varies greatly under different arm extension postures.
[3] For more information, please read the secondary development manual.
[4] For more detailed warranty terms, please read the product warranty brochure.
[5] The above parameters may vary in different scenarios and configurations, please subject to actual situation.
[6] The humanoid robot has a complex structure and extremely powerful power. Users are asked to keep a sufficient safe distance between the humanoid robot and the humanoid robot.Please use with caution.
[7] If any change in the appearance of the product, please refer to the actual product.
[8] This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner.
[9] Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
[1] The maximum torque of the joint motors of the whole machine is different. This is the maximum torque of the largest joint motor among them.
[2] The maximum load of the arm varies greatly under different arm extension postures.
[3] For more information, please read the secondary development manual.
[4] For more detailed warranty terms, please read the product warranty brochure.
[5] The above parameters may vary in different scenarios and configurations, please subject to actual situation.
[6] The humanoid robot has a complex structure and extremely powerful power. Users are asked to keep a sufficient safe distance between the humanoid robot and the humanoid robot.Please use with caution.
[7] If any change in the appearance of the product, please refer to the actual product.
[8] This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner.
[9] Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
Additional Information
| Title |
Variant |
|---|
China Commercial Home Human Robot Smart Educational Intelligent Robot Human Size Humanoid Robots For Sale
$36,765.99
