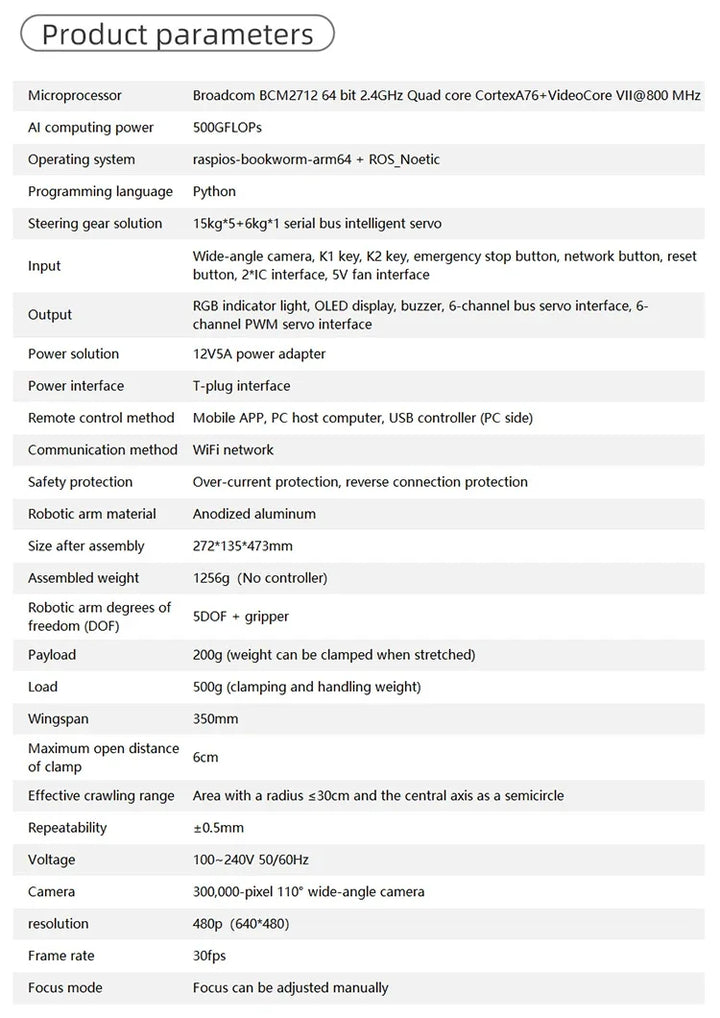

SPECIFICATIONS

Brand Name: NoEnName_Null,CHUJIN,Yahboom

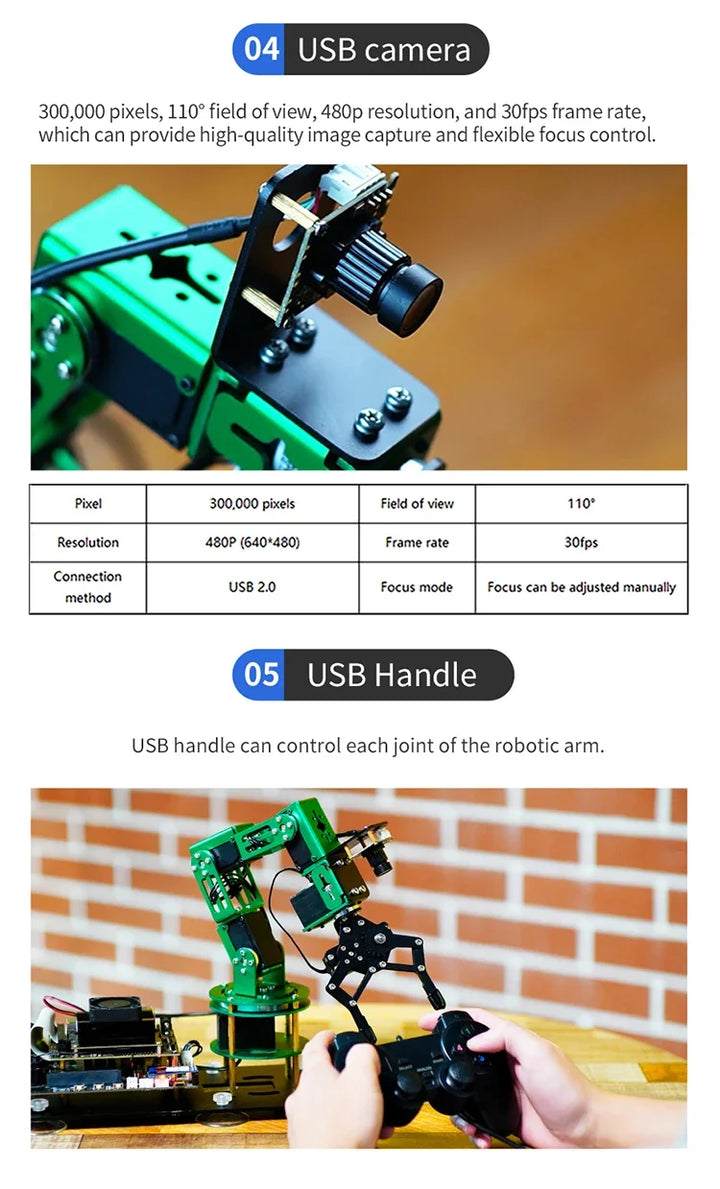

Camera Resolution: 480p(640*480)

Connection method: USB2.0

Degree of DOFBOT: 5 degrees of freedom +gripper

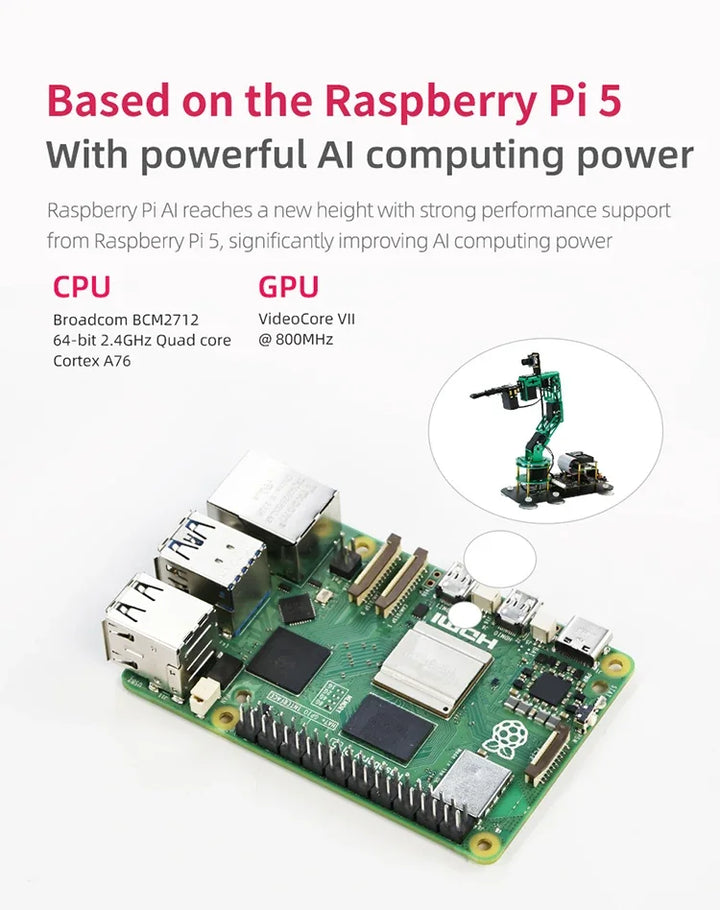

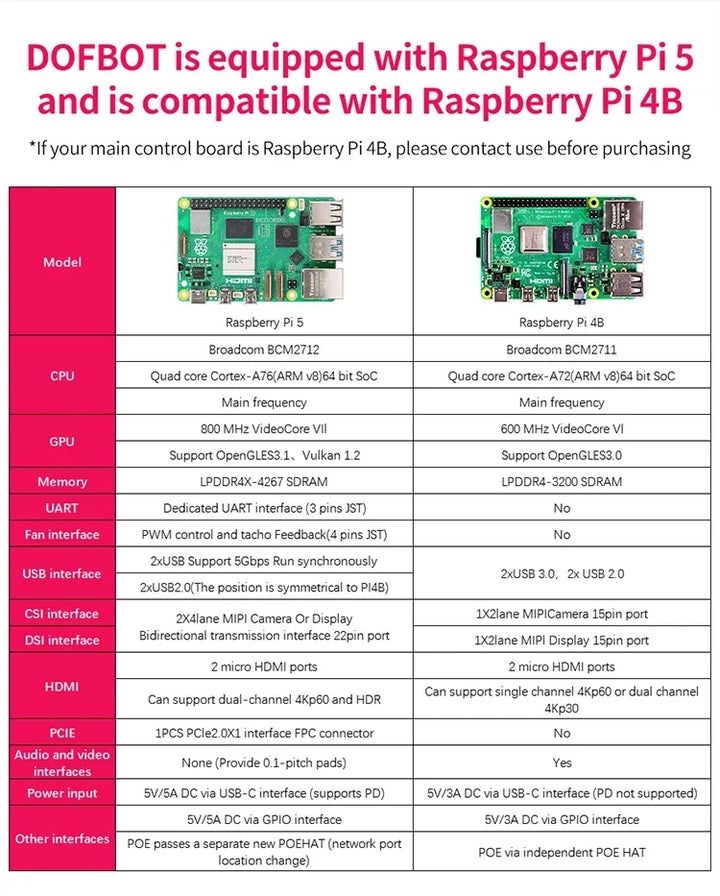

Design for: Raspberry Pi 5 4GB/8GB

Effective grabbing range: the area with radius ≤30cm and semicircle with central axis

Frame rate: 30fps

High-concerned chemical: None

Installation Method: self-contained

Load: 500G(Clamping hgandling weight)

Origin: Mainland China

Payload: 200G(straightenable weight )

Place of Origin: Guangdong, China

Programming language: Python3

Type: Robotic Arm

Version: Raspberry Pi VERSION

My friend, welcome to our store, if you need other models of this product, please contact me whatsapp+86 17377784765Or mailbox zs9868277003@sina.com , I will send the product link for you to buy!



Products Description

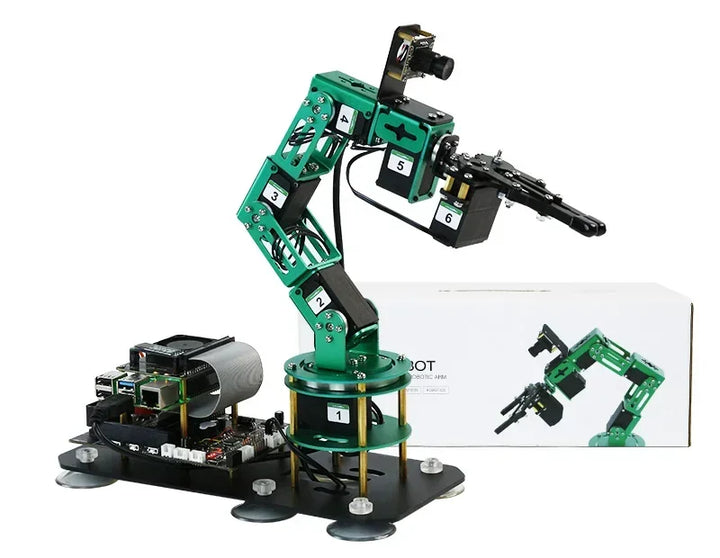

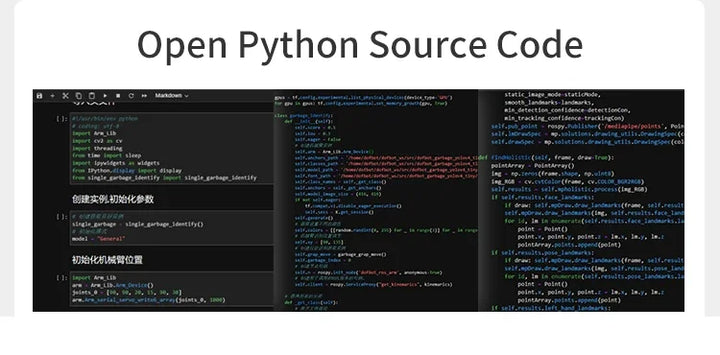

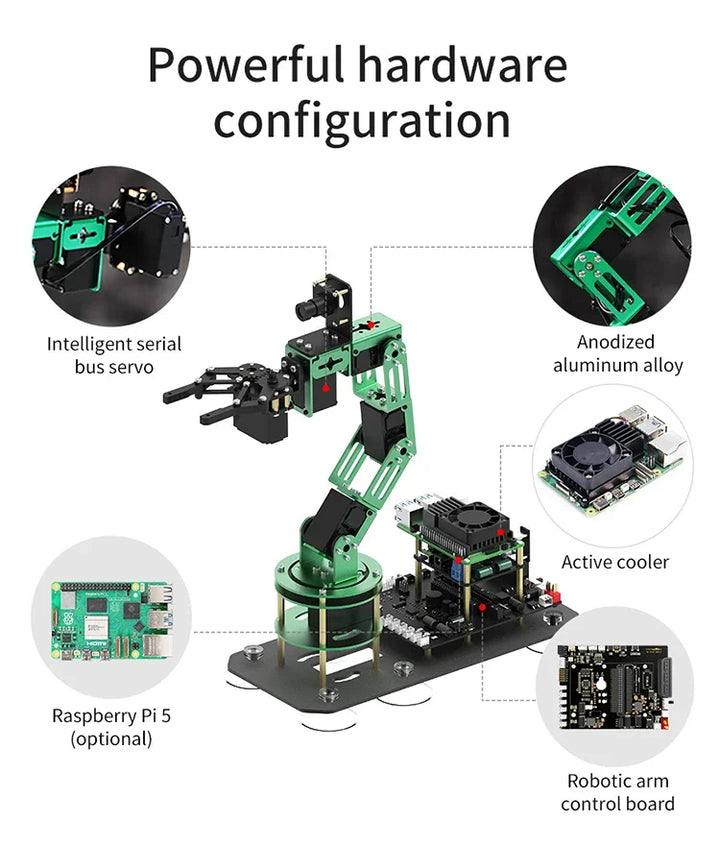

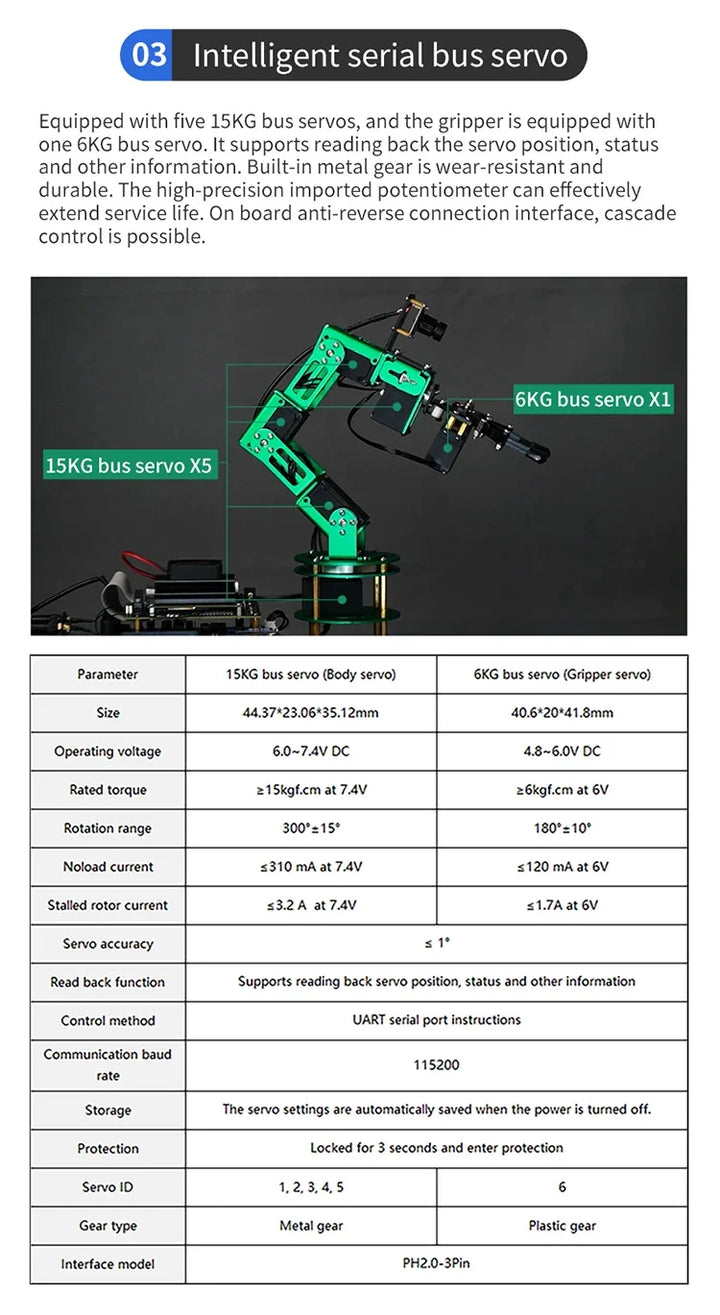

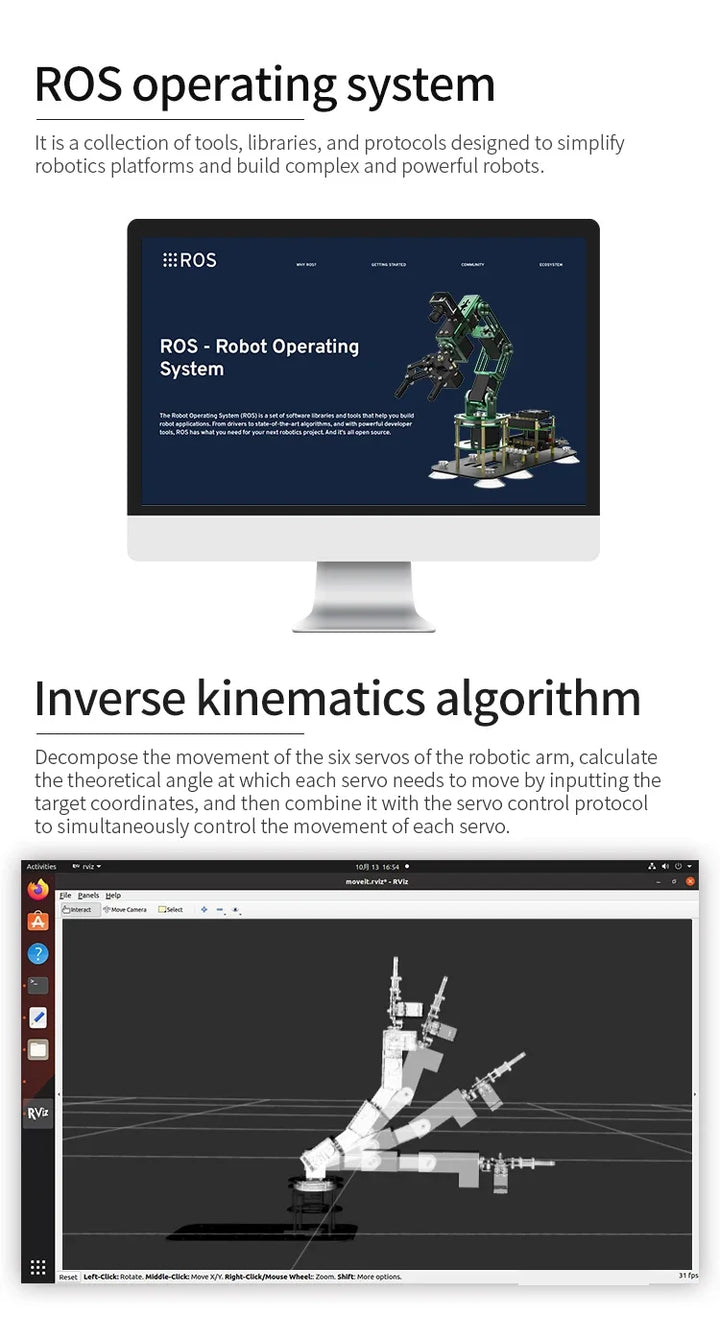

This Raspberry Pi robotic arm is mainly composed of an aluminum alloy bracket, a sturdy chassis, a multi-function expansion board,6 bus servos and a 300,000 pixel camera. We built an operating system specifically for it based on Ubuntu20.04/ROD noetic, using Open Source CV and Python3 programming to create a series of AI vision functions.

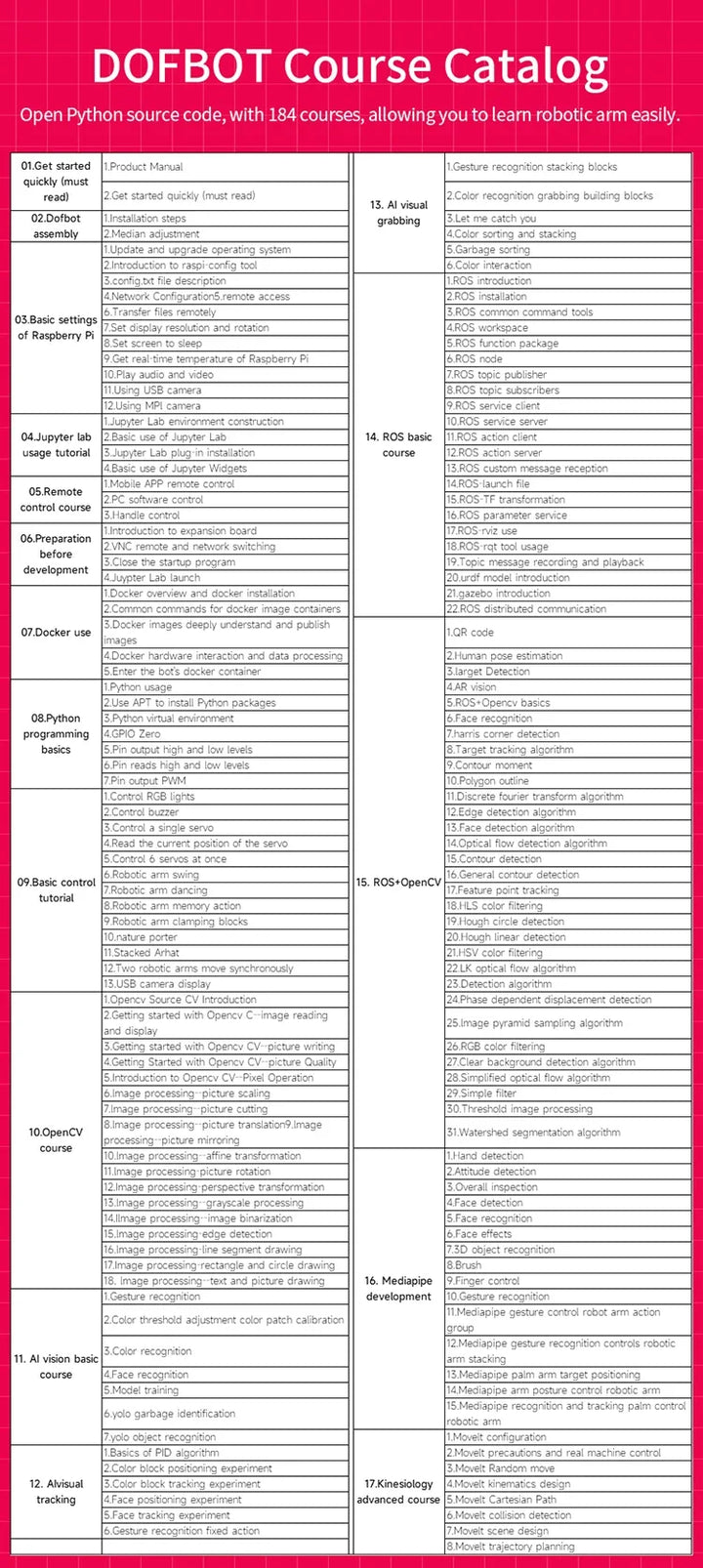

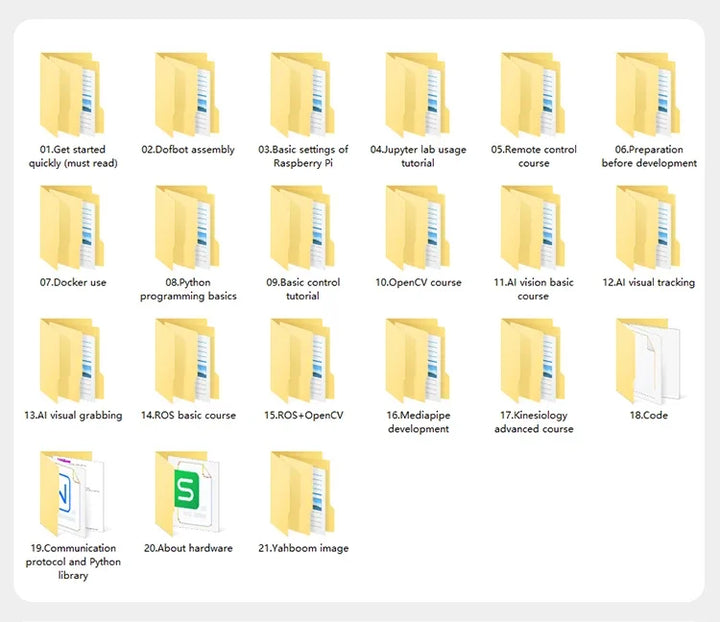

It can be controlled by APP, PC software,handle, JupyterLab. We provide detailed tutorials, open source codes and technical support services for Raspberry Pi players and AI beginners.

Feature

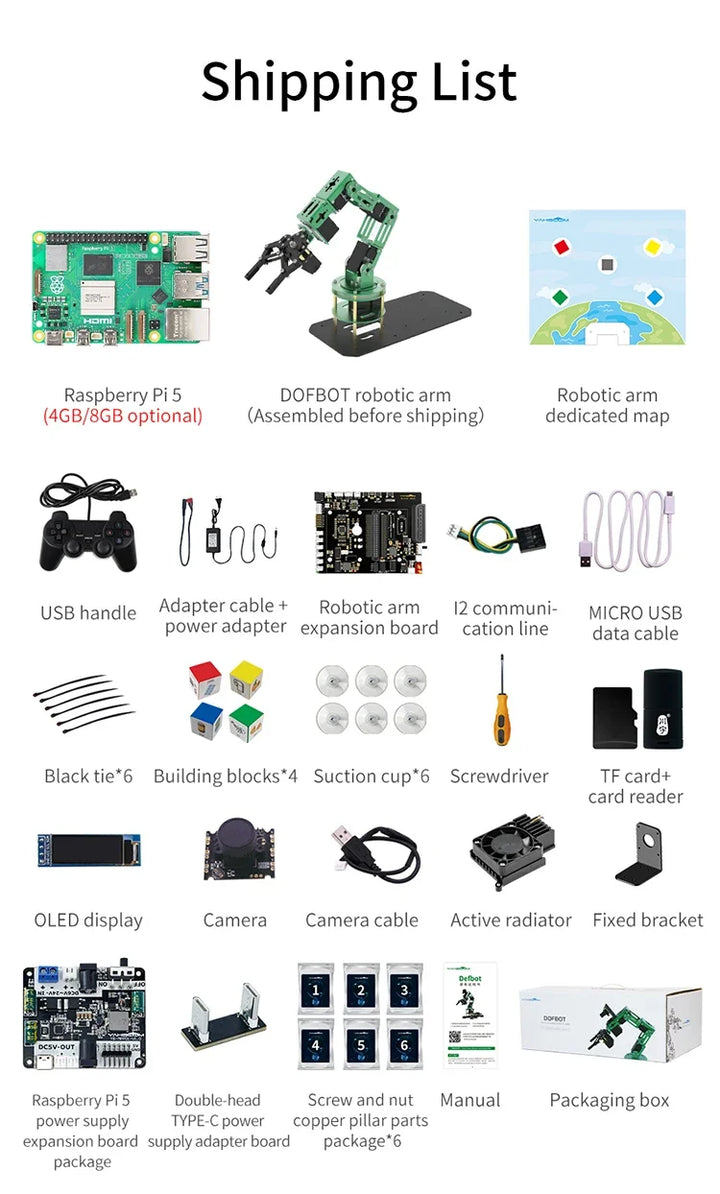

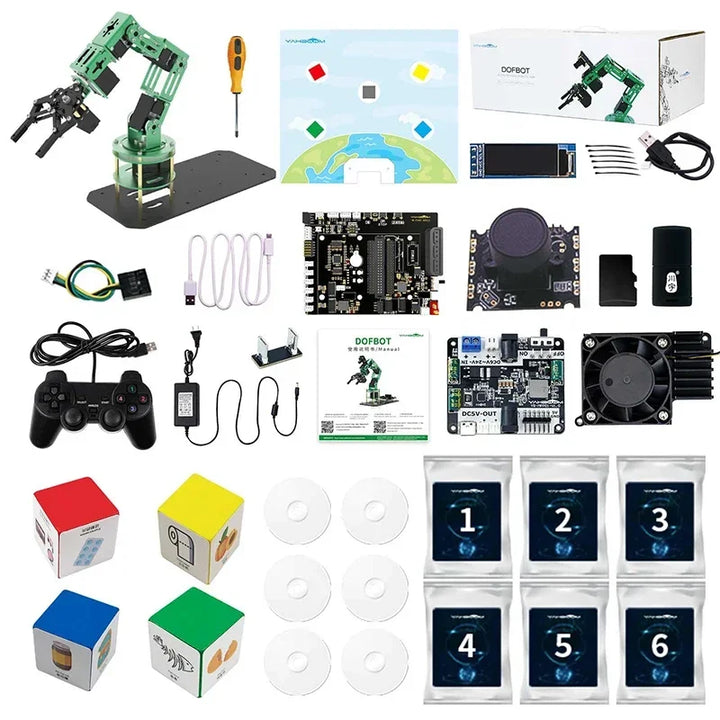

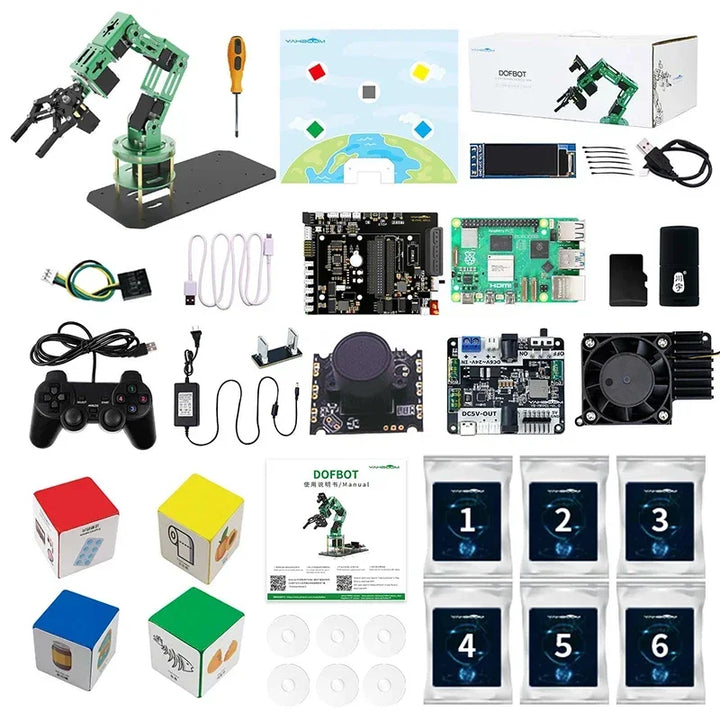

Rich list of materials
* Assembled Robotic arm.
* Matching color-printed map and 4 different colors blocks.
* PS2 gamepad.
* 32G TF card with image system.
* Yahboom special cooling HAT to help heat dissipation.

User-friendly detailed design

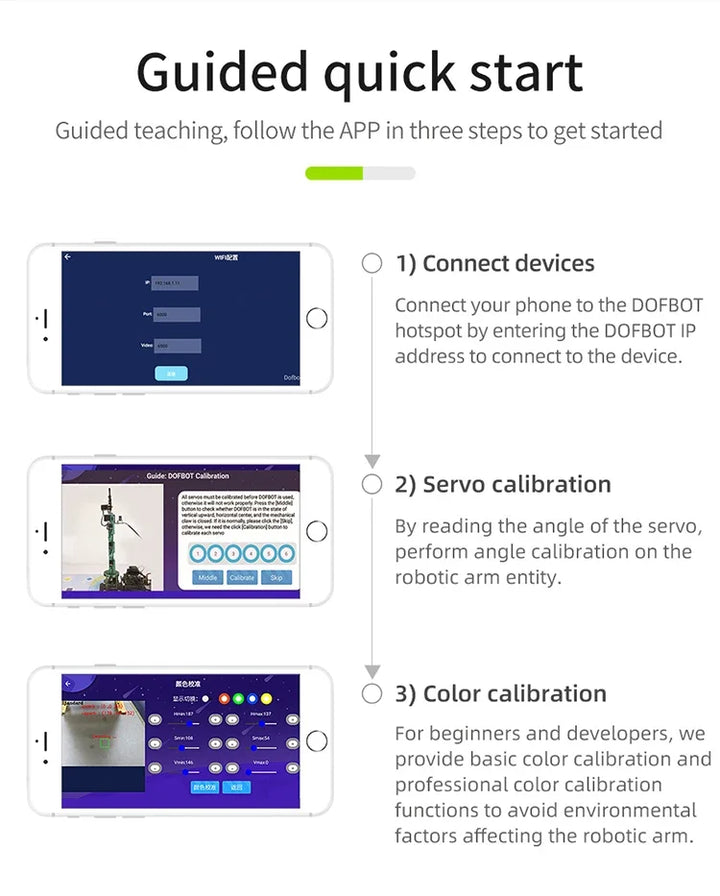

* Users can connect network by the mobile APP QR code on APP to get started quickly.
* OLED displays IP address and Raspberry Pi CPU related information in real time.

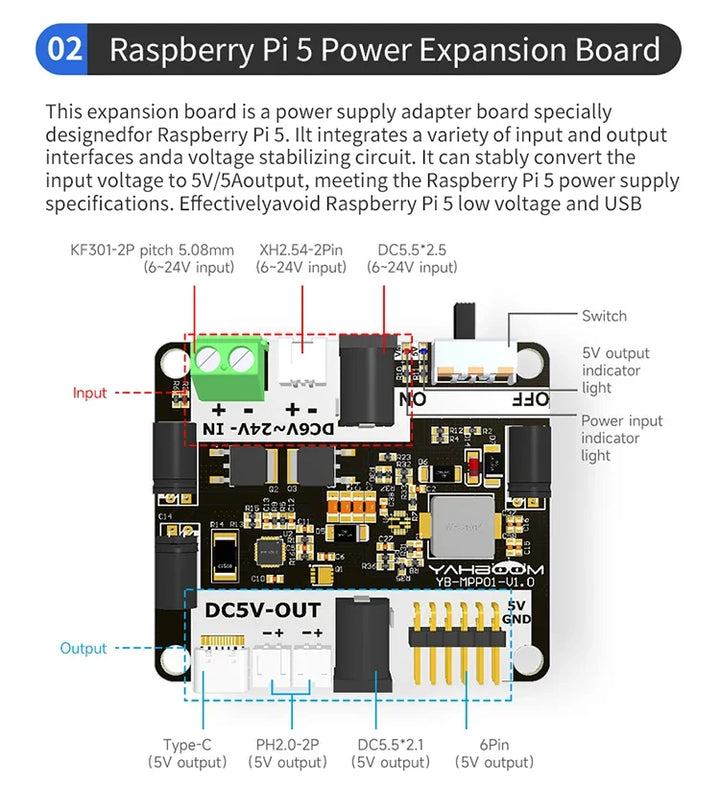

* 12V 5A power adapter power supply, no battery life limit.
* The chassis with suction cups is more stable and can be stably placed in any experimental environment at any time.

Exciting AI features

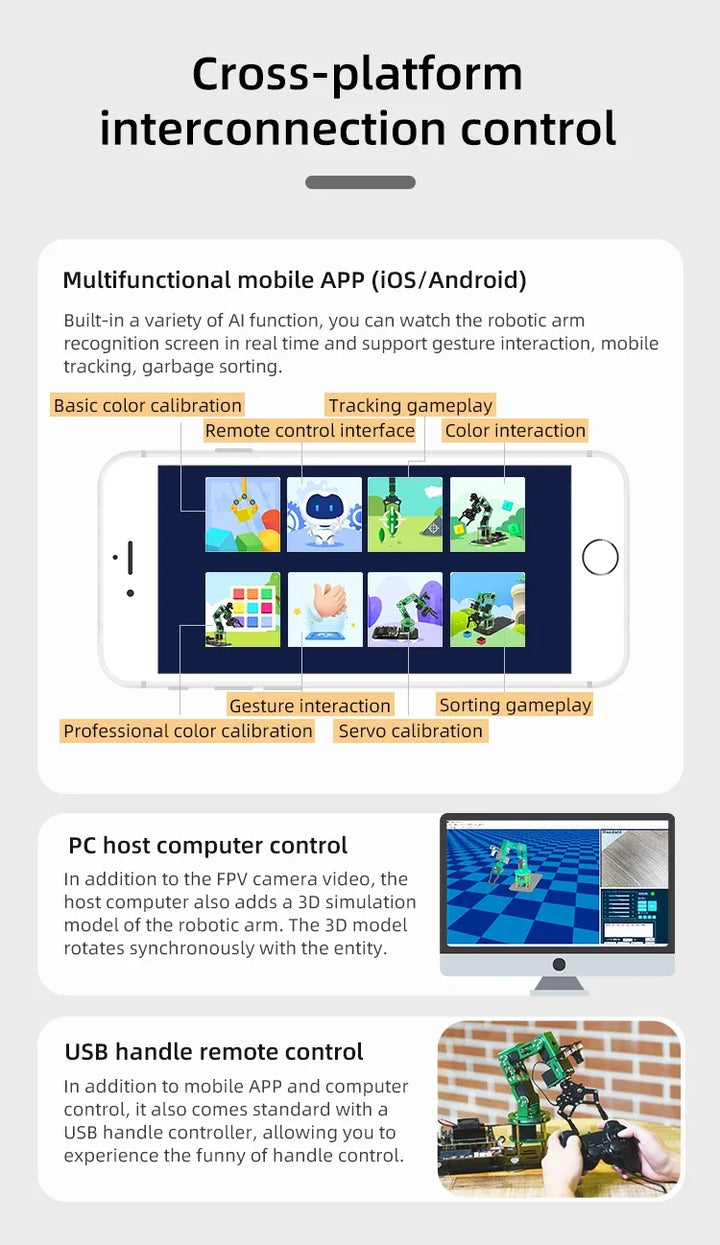

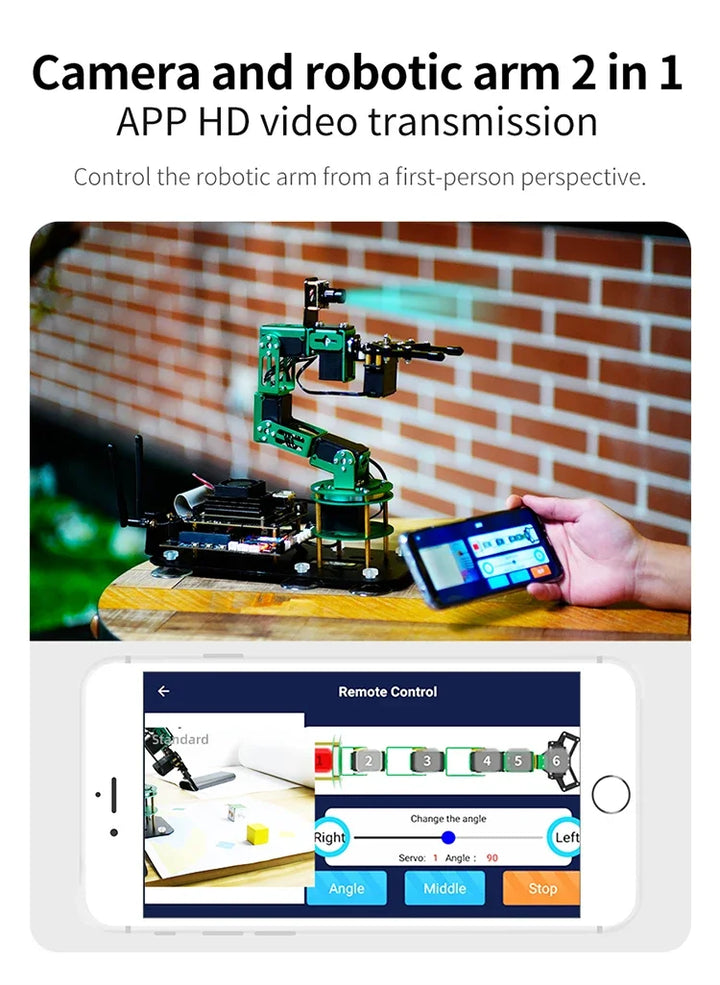

* It can be controlled by Android/iOS APP, PC upper computer, handle, Jupyter Lab webpage online programming.

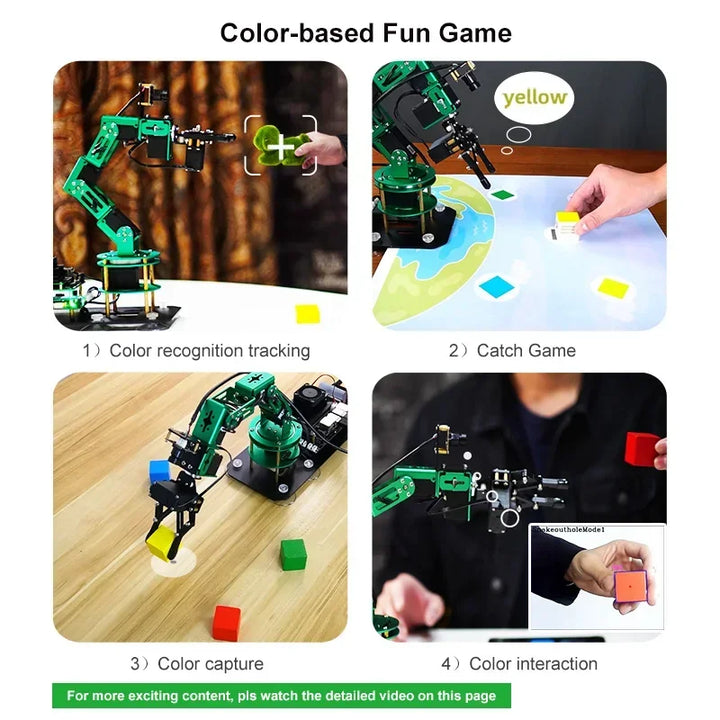

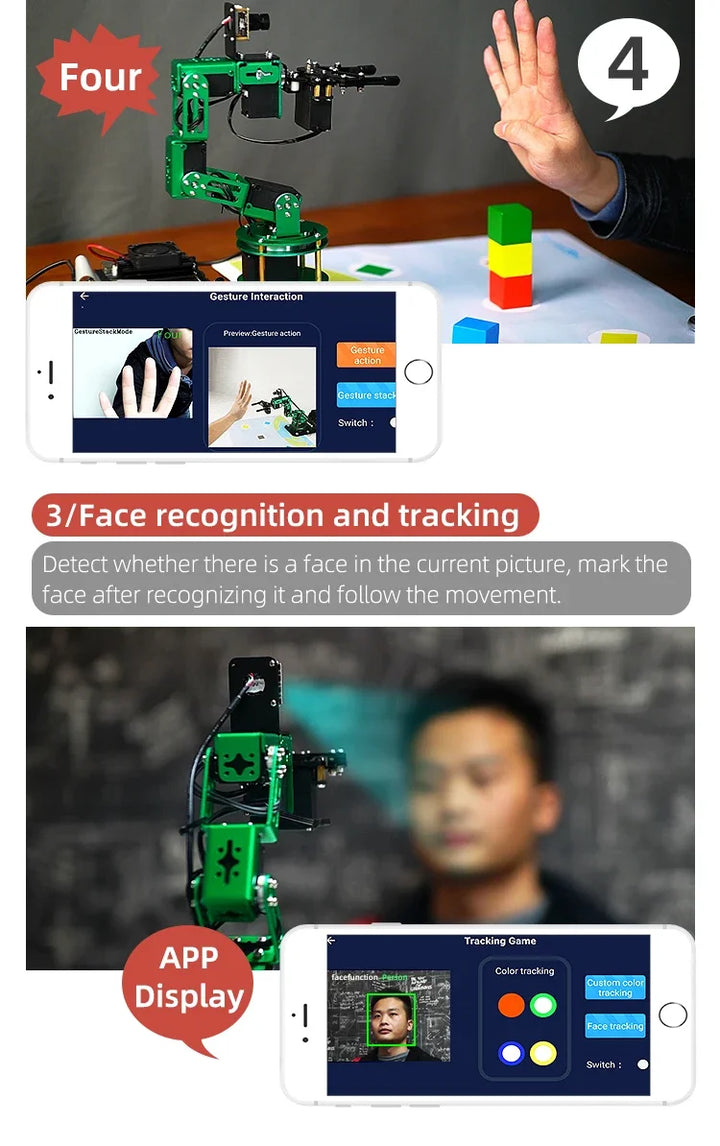

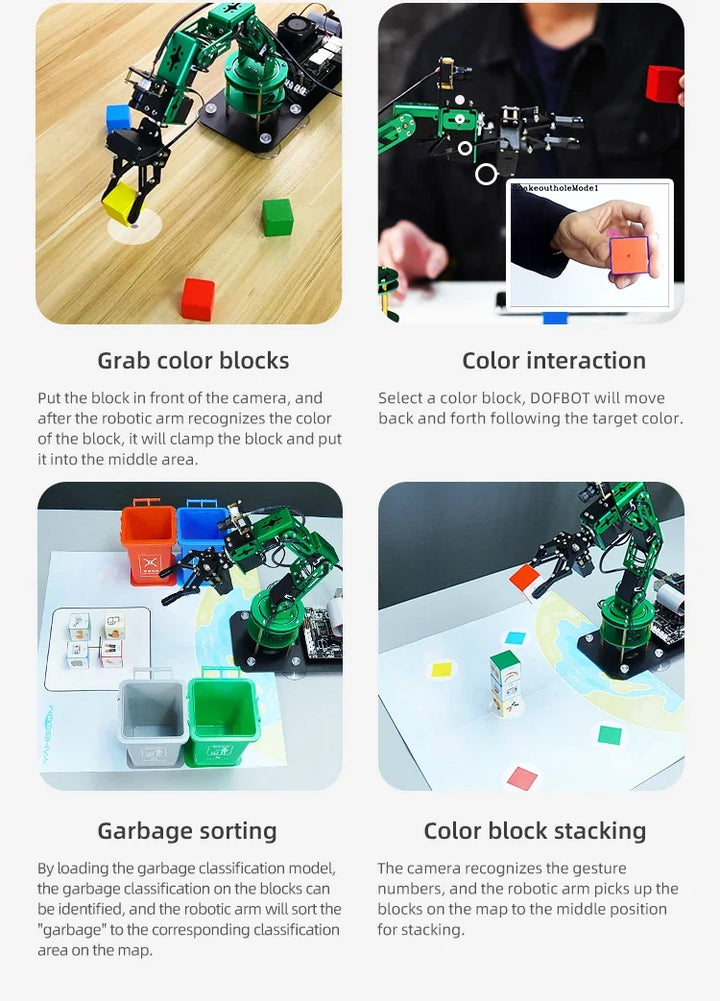

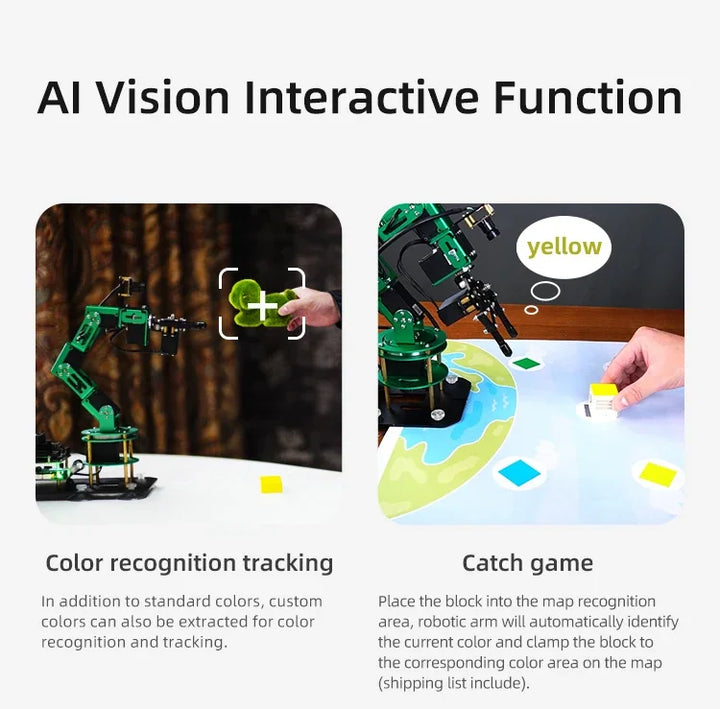

* DOFBOT can realize Gesture recognition, color recognition, visual positioning, garbage classification, guiding snakes out of holes, face tracking, building blocks stacking and other AI games.

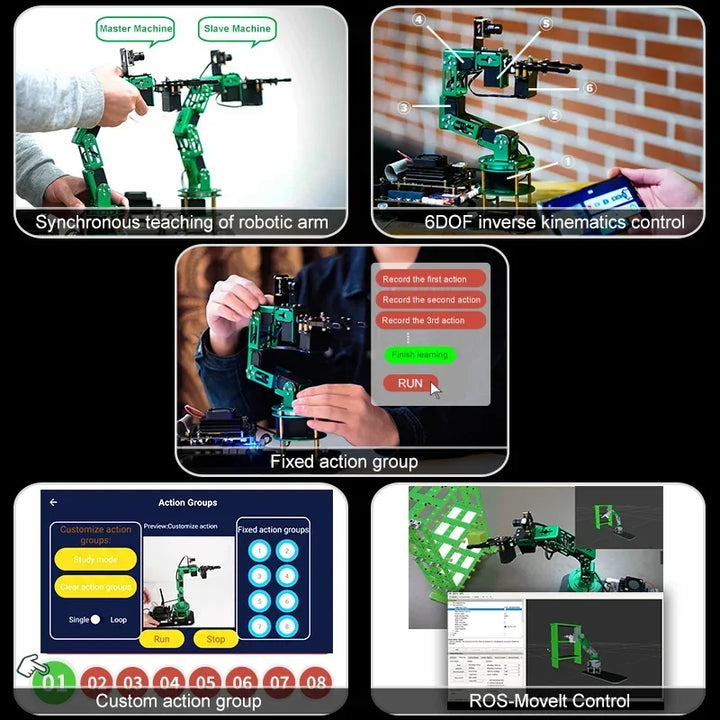

* User can make it learn to customize action groups, and complete the synchronous action of the dual robotic arm.

Excellent extensibility

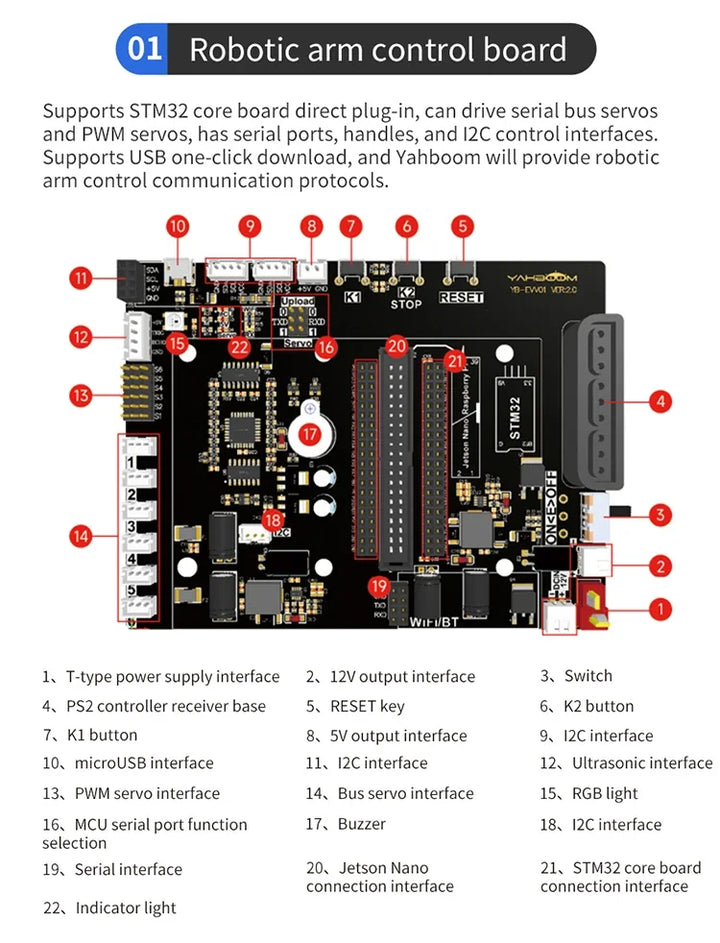

* The expansion board is compatible with Jetson NANO, Raspberry Pi, Micro:bit development boards.
* Aluminum alloy structure is detachable, users can extend or shorten the length of the robotic arm.
* We reserve 6 bus servo (DOBFOT only uses one) + 6 PWM servo, wireless controller receiver, WiFi/Bluetooth module, I2C and ultrasonic module interfaces.

Product details
